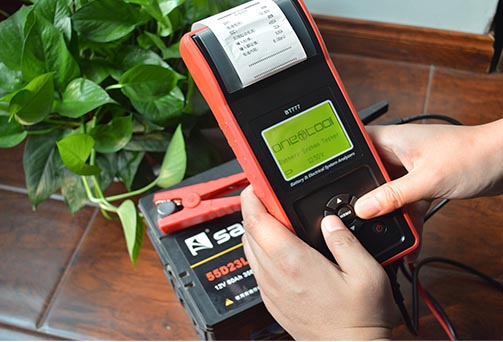

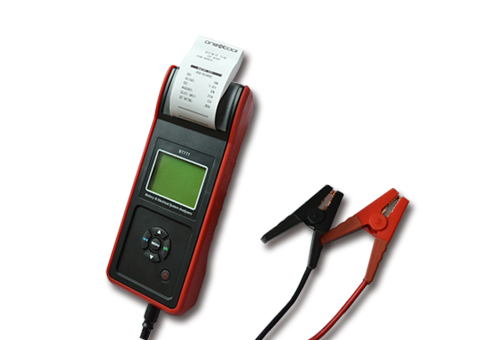

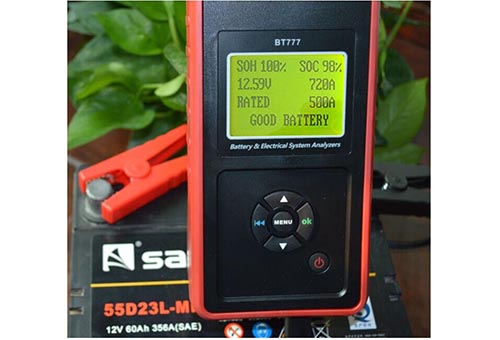

Specially designed for both automotive & heavy duty /Commercial vehicles ,Battery & Electrical System AnalyzerBT777 uses advanced conductance technology to easily, quickly and accurately measure the actual cold cranking amps capability of the vehicle starting battery, healthy state of the battery itself, and common fault of the vehicle starting system and charging system.
-Test all automotive cranking lead acid battery, including ordinary lead acid battery, AGM flat plate battery, AGM spiral battery, and Gel battery, etc.
-Suitable 12V/24V batteries and 12V/24V starting & charging systems
-Directly detect battery condition, ok/not ok.
-With integrated printer
-Store 100 groups of test data for check and print
-Polarity reverse connection protection
-Changeable lead &Kelvin clamp
-Temperature compensation
-Support 15 languages
Technical Parameter
1) Measure Range:
CCA 100-2000
BCI 100-2000
CA 100-2000
MCA 100-2000
JIS 26A17--245H52
DIN 100-1400
IEC 100-1400
EN 100-2000
SAE 100-2000
GB 100-1400
2) Voltage Measure Range: 1.0-30VDC.
3) Current Measure Range: 0-900A DC/AC.
4) Temperature Measure Range: -18°C - +70°C.（0℉-158℉）
Warranty
One year warranty and lifetime maintenance
