Ultrasonic Leak Detector OTL268 is designed to quickly and accurately locate leaks in any pressure and vacuum system. Ultrasonic transmitter generates supersonic waves whose frequency is about 40kHz. By using the ultrasonic transmitter and the leak detector together, you can check tightness of non-pressurized compartments.It is very suitable for detecting cracks of pipes, valves, and for tightness check for cabin, plane, vehicle cabinet, refrigerator, freezing plant, oil tank and other sealed compartments.
Specification
Signal Indicator: LED-array, headphone
Frequency Response: 36kHz-44kHz
Operating Environment: temperature: 0℃-50℃
relative humidity: ≤85%

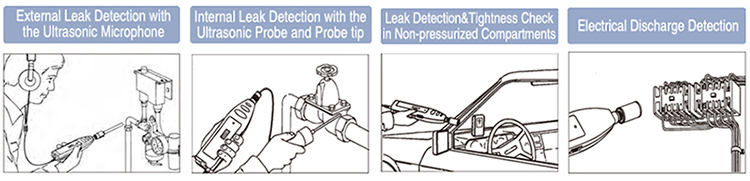

Applications

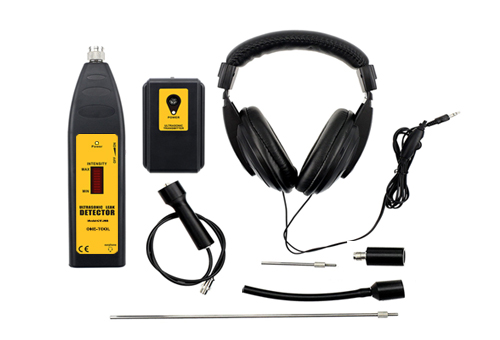

Kit includes
1 Leak detector 2 Ultrasonic transmitter
3 Headphone 4 Ultrasonic probe
5 Ultrasonic microphone 6 Extension tube
7 Short probe 8 Long probe
