OTI800 Engine Ignition Analyzer

The Engine Ignition Analyzer OTI800 was created specically to perform quick and reliable diagnostics of non-starts, misfires, fouled up or damaged spark plugs and/or spark plug wires, by comparing digital read-outs of the spark plug voltage and spark burn time between cylinders on engines using Coil on Plug, Coil near Plug, conventional distributor/ignition coil, DIS (Distributor-less) or waste spark and magneto technologies.


Quick and easy diagnostics of:

Non-starts
Misfires
Defective coils
Fouled or damaged spark plugs
Damaged spark plug wires

Suitble for

Coil on Plug, Coil near Plug,
Conventional Distributor Ignition Systems
Distributor-less Ignition Systems (DIS)


How to use

1.Select the ignition system to be measured (spark plug wire or coil on plug), and the number of cycles.
2.Select the measurement to show in the main display (RPM, spark burn time and spark plug voltage) and secondary display (Minimum and Maximum of the main display or the complementary measurements)

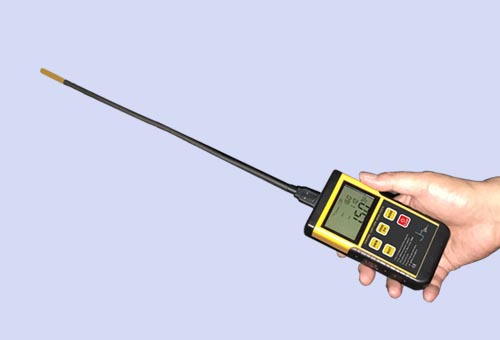

3.Place the antenna’s capacitive pick-up on top of the Coil on Plug module, or over a spark plug or ignition coil wire, and then read the measurements on the LCD display.

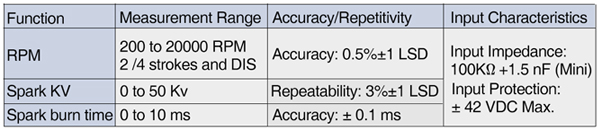

Technological Specifications
Display:
    Main display and secondary display
    Function indicator
    Measurement units Iindicator
    Spark detection indicator
    Number of strokes indicator
    Ignition system indicator
    Low battery indicator
Ignition system comp.:
    Coil on plug, coil near plug, DIS, conventional and magneto
Engine strokes:
    2 and 4 strokes and DIS
Electrical Specifications:

Power:
    9 Volt battery, type MN1604
Auto power off:
    Automatically powers off after 3 min. of no operation
Battery life:
    Approximately 15 hours (w/alkaline battery)
Probe length:
    25 cm including capacitive pick-up
Included accessories:
    The capacitive pick-up
    Padded hard carrying case
    User’s manual
    1 x 9 Volt alkaline battery
