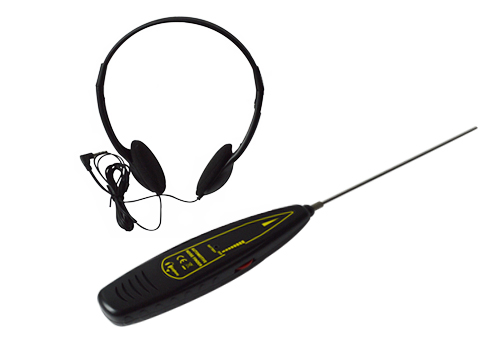

OTEM400 Automotive Noise Finder

Automotive Noise Finder OTEM400 is a portable equipment to diagnose the defect of the vehicle. When the generator is running, it can detect the impact and vibration due to the defect and failure of bearing, gear, valve, rank, cylinder, gear box and vehicle body...etc.With this equipment, you can clearly locate which part of the machine cause the noise and how serious is it.


Operation

1.Install the battery
2.Plug the headphones into the jack of the amplifier.
3.Switch amplifier on, the red LED of amplifier shall lights up.
4.Rotate the wheel to turn the probe on and adjust volume by rotating the thumbwheel.


Specification:
Frequency Range: 10Hz~100kHz
Ambient Noise Permitted: 100Db
Working Temperature:-10℃~55℃
Power Supply: 9V battery


Kit includes:
Stethoscope       x1
Headphone        x1
Probe                x1
manual              x1
9V battery          x1
