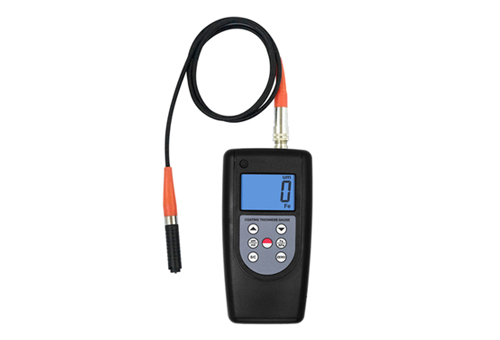

OTC1210 Coating Thickness Gauge
- Two measuring methods: magnetic induction (F) and eddy current (N)
- Two measurement mode: Single and Continuous.
- Metric/imperial system selectable.
- Manual or automatic shut down.
- Automatic memory of calibration value,and automatic recognize the substrate.
- Operation process have buzzing reminder,while no buzzing in continuous mode.
- Use USB/RS-232 data output to connect with PC.
- Provide Bluetooth data output choice.
- Separate Type can provide several type probe, measure can be more flexibility

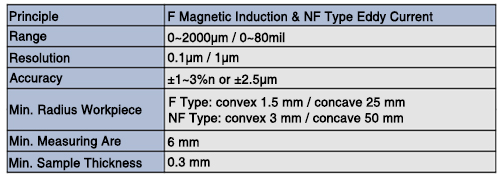

Specification
Package includes
- 1 x Main Unit
- 1 x Calibration Base Set (F Type / NF Type) CTG-BS
- 4 x Calibration Foils CTG-CF (1 set, 4 pieces)
- 1 x Carrying Case
- 1 x Operation Manual
- 4 x 1.5 V AAA battery
Optional accessories:
USB, RS-232C data cable with software
