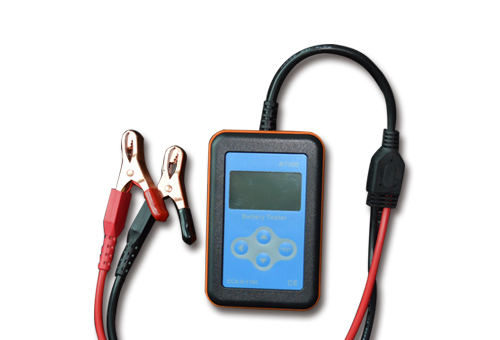

BT300 Battery Tester adopts currently the world's most advanced conductance testing technology to easily, quickly and accurately measure the actual cold cranking amps capability of the vehicle starting battery, healthy state of the battery itself, and common fault of the vehicle starting system and charging system, which can help maintenance personnel to find the problem quickly and accurately, thus to achieve quick vehicle repair.
- Suitable 12V batteries and 12V/24V starting & charging systems
- Main functions of BT300battery tester include: battery test, cranking test, charging test and other additional functions.
- Voltage Measure Range: 8~30VDC.
- Operating Range:CCA100-2000
- Polarity reverse connection protection
- Directly detect bad cell battery
- Testing standards: CCA, BCI, CA, MCA, JIS, DIN, IEC, EN, SAE and GB.
- Temperature compensation
- Support multi-languages
Technical Parameters
1. Cold Cranking Amps Measure Range:
Measure Standard Measure Range
CCA 100-2000
BCI 100-2000
CA 100-2000
MCA 100-2000
JIS 26A17-245H52
DIN 100-1400
IEC 100-1400
EN 100-2000
SAE 100-2000
GB 100-1400
2. Voltage Measure Range: 8-30VDC
